Description
1. Products Name:
High Configuration EDM

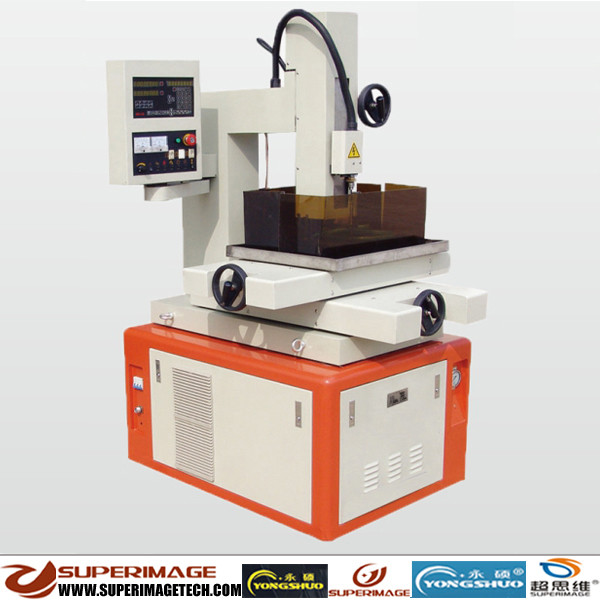

3-Axis,(4-Axis,5-Axis) 400mm*500mm High-speed CNC EDM Drilling Machine
3-Axis (4-Axis,5-Axis) High-speed CNC EDM Drill Sinking Machine
3-Axis (4-Axis,5-Axis) CNC Fine-Hole EDM
3-Axis (4-Axis,5-Axis) CNC Small Hole Drilling EDM
3-Axis (4-Axis,5-Axis) CNC EDM Pouching Machine
2. Basic Technical Data:
TECHNICAL DATA
EDM-YS-D703E
CONTROL SYSTEM & AXIS QTY.
AUTOCUT, 3-AXIS /4-AXIS/5-AXIS
XY AXIS TRAVELING DISTANCE
400*500MM
WORKTABLE SIZE
510*800MM
MAX.LOADING WEIGHT OF WORKTABLE
500KG
CLAMPING MOTORR DIAMETER
Φ0.3-0.4MM
SPINDLE HEAD TRAVELING DISTANCE
300MM
SPINDLE SERVO TRAVELING DISTANCE
350MM
MAX.SPINDLE SPEED
120MM/MIN
THE ROTATING SPEED OF C-AXIX
60RPM
MAX.DISTANCE BETWEEN GUIDE & WORKTABLE
380MM
THE HEIGHT OF WORKTABLE
920MM
MAX.MACHINING CURRENT
30A
MAX.INPUT POWER
3.0KW
MACHINE RUNNGING POWER
1.5KW
POWER SUPPLY MODE
380V/5OHZ
RUNNING MODE OF WORKING LIQUID
CIRCULATING FILTERING MODE
MAX.CAPACITY & PRESSURE OF WORK LIQUID
25LITERS/6MPA
MACHINE WEIGHT
1800KG
MACHINE SIZE
1710MM*1250MM*2000MM
3. Payment methods
By T/T in advance;
Down payment: 50% of total amount. Before delivery, 50% balance need to be paid.
4. Delivery time:
By Sea
Delivery time: about 25-30 days.
5. Quality Warranty:
SuperImage offers “3R” quality warranty for our CNC EDM-”Replacement, Return, and Refund” will be guaranteed for inferior quality products.
